Pre-Insulated Wire Strip Crimp Machine WPM-5-40
The Semi-Automatic Ferrule Terminal Crimping Machine Model WPM-5-40 is designed for high-performance crimping of pre-insulated terminals. With a robust AC220V power supply, it operates efficiently at a capacity of 2.5 seconds per crimp. This versatile machine supports a range of wire sizes from 0.5 to 4.0 mm², ensuring compatibility with BVR lines. It features a quadrilateral crimp shape and is capable of operating within a temperature range of 10-25℃ and humidity levels of 30-80% HR. Weighing 40 kg and with compact dimensions of 350 x 450 x 400 mm, it’s ideal for both manual and automatic operations, and comes equipped with a user-friendly man-machine interface for easy control. The machine provides safety features, including terminal detection and a right safety door mechanism, making it a reliable choice for your crimping needs.
1-Year Warranty
OEM / ODM
Global Shipping
24H Response
Product Video
Product Description
Headline: Boost Productivity with the WPM-5-40: Your Premier Semi-Automatic Wire Strip Crimp Machine for Ferrule Terminals
Introduction:
In today’s fast-paced manufacturing environment, efficiency and precision are paramount. The WPM-5-40 Semi-automatic Ferrule Terminal Crimping Machine / Wire Strip and Crimp Machine is engineered to elevate your wire processing capabilities, offering a robust and reliable solution for Bulk Tube Pre-insulation Terminal Crimping and Tube Pre-insulation Terminal Crimping. This advanced Wire Strip Crimp Machine is designed for high-volume production, delivering exceptional performance and consistent quality for all your pipe-type terminal applications.
Key Features and Benefits:
- High-Speed Crimping for Enhanced Throughput: Achieve rapid production with a cycle time of just 2.5 seconds. The WPM-5-40 significantly boosts your output, allowing you to meet demanding production schedules with ease.
- Precise and Consistent Quadrilateral Crimp: Guarantee secure and reliable electrical connections with the machine’s quadrilateral crimp shape. This ensures optimal conductivity and long-lasting performance for your wire assemblies.
- Versatile Wire Compatibility: Process a wide range of BVR wires, including 0.5, 0.75, 1.0, 1.5, 2.5, and 4.0 square millimeters. This versatility makes the WPM-5-40 adaptable to various application needs.
- Specifically Designed for Pipe-Type Terminals: This machine excels at processing pipe-type terminals, accommodating insulator lengths up to 7.5mm and conductor lengths up to 10mm.
- Semi-Automatic Operation for Optimal Efficiency: Combining automated crimping with manual component replacement and adjustments, the WPM-5-40 offers the perfect balance of automation and flexibility.
- User-Friendly Man-Machine Interface: The intuitive interface simplifies operation and control, allowing for easy adjustments and monitoring of the crimping process.
- Dual Operation Modes: Adapt to different production needs with both automatic trigger and manual operation modes, providing flexibility and control over your workflow.
- Comprehensive Safety Features: Integrated safety mechanisms, including terminal presence/absence detection and safety door verification, ensure operator safety and minimize errors during operation.
- Compact and Robust Design: With dimensions of 350 mm × 450 mm × 400 mm and a weight of 40 kg, the WPM-5-40 is space-saving and easily integrated into your production line, while maintaining a robust build for long-term reliability.
- Pneumatic and Electronic Control: Leveraging both pneumatic and electronic control systems, the machine delivers smooth, reliable, and precise operation.
Technical Specifications:
Applications:
The WPM-5-40 is ideally suited for a wide range of applications requiring high-quality crimping of pipe-type pre-insulation terminals, including:
- Automotive wiring harnesses
- Electronic component assembly
- Industrial control panels
- Appliance manufacturing
- And more!
Conclusion:
Invest in the WPM-5-40 Semi-automatic Ferrule Terminal Crimping Machine / Wire Strip and Crimp Machine and experience a significant improvement in your wire processing efficiency and product quality. This robust and reliable machine is designed to meet the demands of modern manufacturing, ensuring consistent performance and exceptional results. Contact us today to learn more and request a quote.

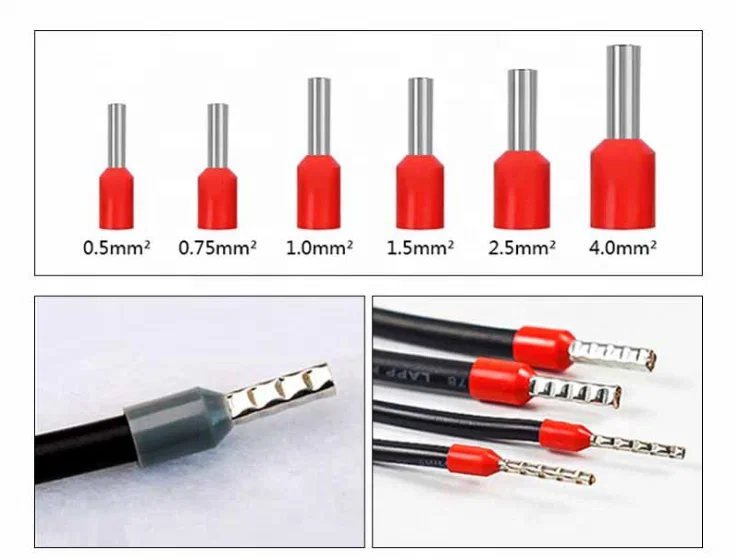

Crimping result
Technical Specifications
| Feature | Specification |
|---|---|
| Model | WPM - 5 - 40 |
| Product Name | Pipe - type Terminal Automatic Peeling and Crimping Machine |
| Keyword Focus | Wire Strip Crimp Machine, Semi - automatic Ferrule Terminal Crimping Machine, Bulk Tube Pre - insulation Terminal Crimping Machine, Tube Pre - insulation Terminal Crimping Machine |
| Power Supply | AC220V, 50/60Hz |
| Gas Source | 0.6 - 0.8 MPA |
| Crimp Shape | Quadrilateral Crimp |
| Production Capacity | 2.5 seconds per cycle |
| Operating Temperature | 10°C - 25°C |
| Working Humidity | 30% - 80%RH (Relative Humidity) |
| Weight | 40 kg |
| Dimensions | 350 mm × 450 mm × 400 mm |
| Control Method | Man - Machine Interface, Electronic Control, Pneumatic Control |
| Operation Mode | Automatic Trigger / Manual Operation |
| Applicable Wires | BVR wires of 0.5, 0.75, 1.0, 1.5, 2.5, 4.0 sq mm |
| Terminal Specification | Insulator length < 7.5 mm, Conductor length < 10 mm |
| Test Items | Terminal presence/absence detection, Safety door verification |
