Auto Double End 5-Wire Processor
Introducing the Fully Automatic Both Ends 5-Wire Cutting Stripping Twisting Tinning Machine, designed for high efficiency in wire processing tasks. This versatile machine handles wire sizes from AWG 18-24 and AWG 24-32, delivering remarkable output rates of 2700-4000 pieces per hour for 32-20 AWG wires and up to 6400-10000 pieces per hour for 20-16 AWG wires. With customizable cutting lengths ranging from 30-550mm and precise tolerances of ±0.02mm, it guarantees accuracy in every operation. The machine is equipped for cutting, stripping (0-9mm), twisting (3-9mm), and tinning (0.5-9mm) wire ends, making it the perfect solution for various industrial applications. Operate seamlessly with an air supply requirement of just 0.5-0.7MPa, optimizing your production workflow with this all-in-one tool.
1-Year Warranty
OEM / ODM
Global Shipping
24H Response
Product Video
Product Description
Fully Automatic Dual-End 5-Wire Cutting, Stripping, Twisting and Tinning Machine
Wire Cutting, Stripping and Tinning Machine; 5-Wire Cutting, Stripping and Tinning Machine; Automatic Dual-End Wire Tinning Machine
Specification
This machine is engineered to automatically cut, strip, twist and tin flat cables and single wires, boasting high efficiency and precision.

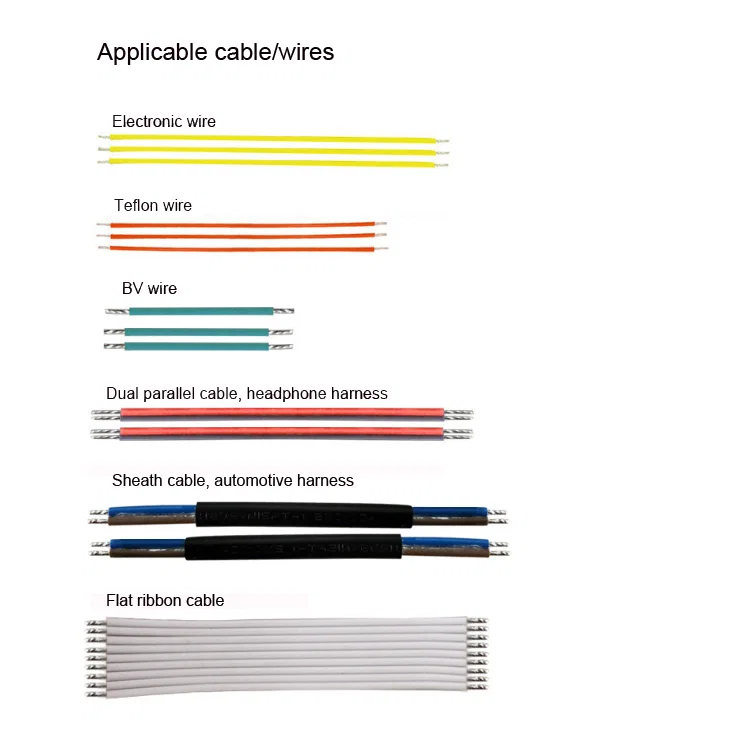

(1) For single wires, the machine can be configured to output 1, 3, 5 or 8 wires in one operation, with the quantity determined by the wire diameter.
(2) Applicable for flat cables, ribbon cables and flat sheathed cables.
Item Details
Place of Origin: China
Usage: Cutting, Stripping, Twisting, Tinning
Warranty: 1 Year
Efficiency (1 output 3): 32 – 20AWG, 2700 – 4000 pieces per hour
Efficiency (1 output 8): 20 – 16AWG, 6400 – 10000 pieces per hour
Applicable Wire: AWG18 – 24 / AWG24 – 32
Cutting Length: 30 – 550mm (minimum 8mm, customizable)
Cutting Tolerance: 0.2 ± 0.02 * Length
Stripping Length: 0 – 9mm
Twisting Length: 3 – 9mm
Tinning Length: 0.5 – 9mm
Air Supply: 0.5 – 0.7MPa
Features
Machine Dimensions (L * W * H): 1210 * 770 * 1370mm
Machine Weight: 400KG
Component Details:
Control System: Delta PLC
Cylinder: Germany Mayer
Solenoid Valve: Festo, Germany
Screw Guide: Taiwan Silver
Servo Motor Drive: Hechuan (Mitsubishi available as an option)
Pneumatic Components: SMC
Temperature Control Panel: Omron
Advantages:
– Factory-direct sales ensure excellent quality. The computer touch screen with a Chinese operation menu is easy to learn and operate.
– Utilizes imported high-precision components, ensuring stable performance.
– The operation is straightforward. Parameters such as wire length, cutting speed, tin immersion time and tin dipping times can be easily adjusted via the touch screen. This also enables effective tinning of some wires that are difficult to process.
– The lead-free tin furnace meets high environmental protection standards. It is equipped with an automatic tin scraping device, ensuring that the cut wires are bright and free of tin residues. The tin scraping time can be set to minimize tin loss. The 90-degree tin dipping angle results in an even tinning finish.
